Application

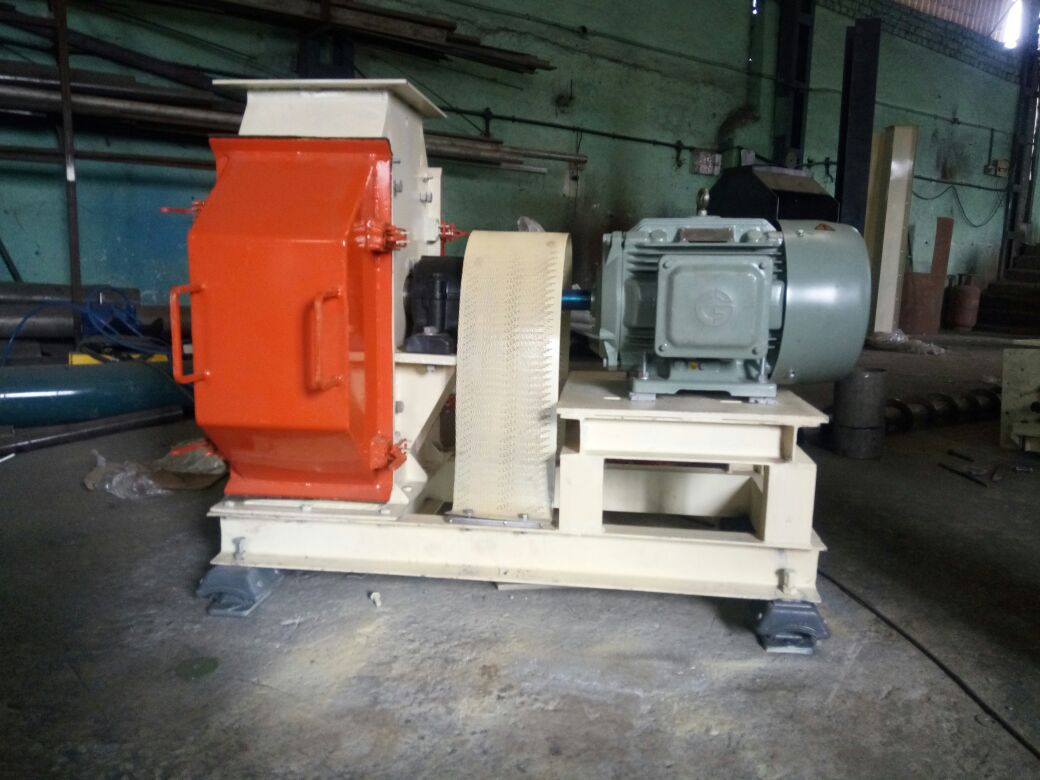

As its name implies, Full screen hammer mill
have 80 % screening area as compare to 50 % in
half Screen hammer mill. This machine is an
answer to many fine or coarse grinding
problems that we usually face. Our Full screen
hammer mill has so many other features also
that make it an ultimate choice. Mill capacity
from 1 TO 12 TPH (Depend on bulk density and
moisture contain in grain)Suitable for all grains,
size of grain is as under, Maize Size-10-12mm /
Sorghum-3-6mm /Millet- 2-3 mm / Broken rice-
2-4mm. Flour size from all grain for process i.e.
Maximum 5%-8% above 0.8mm sieve size
(above size material will be within 0.85mm
range)
Features
- Rotary Feeder with magnetic Separator and air control flap for equal distribution of grindables.
- Rotor is dynamically balanced resulting in low noise and trouble free running.
- Steel plate welded structure; motor and rotor are mounted on same base plate.
- Easy access to the machine & simple sieve and hammer changes minimize downtime.
- Sturdy and robust design best possible input to output power ratio.
